The Ilyushin Il-76, a Soviet military transport aircraft, is commonly referred to as one of the most unique heavy airlifters ever built. The cargo hatch is the true essence of the aircraft’s distinctiveness, despite the fact that its engines, rugged landing gear, and extended service life garner significant attention. Unlike the majority of Western and Soviet transport aircraft, the Il-76 is distinguished by a complex, four-door rear cargo entrance that was not intended for elegance or simplicity, but rather for complete operational independence. This design is indicative of a particular Soviet military doctrine that prioritized autonomy, survivability, and the capacity to operate in remote areas without developed infrastructure.
The cargo hatch of the Il-76 is not purely a door located at the rear of the aircraft. It is a comprehensive system that establishes the aircraft’s capabilities in combat and emergency situations, as well as its payload deployment, loading, and unloading processes. It is necessary to comprehend the environment in which the aircraft was designed in order to comprehend the reason for its appearance.
The Hatch Was Influenced by Military Requirements
The Soviet military imposed unusually stringent and occasionally contradictory requirements on the designers of the Il-76 during its development in the late 1960s and early 1970s. This aircraft was required to transport up to 60 tons of cargo, operate from runways that were either unsuitable or damaged, support airborne and cargo airdrop operations, and function without the assistance of sophisticated ground equipment. Soviet planners anticipated that their transport aircraft would operate in remote regions, forward deployment zones, and even partially destroyed airfields, in contrast to Western doctrine, which presumed access to well-equipped airbases and standardized logistics systems.
These specifications had an immediate impact on the cargo hatch’s design. Although a straightforward rear ramp is sufficient for many missions, it would not enable the aircraft to completely load itself in the absence of cranes or loaders on the ground. At the same time, the aircraft was required to facilitate parachute landings of vehicles and cargo, necessitating the precise management of airflow and the reinforcement of the rear fuselage. The solution was a multi-section hatch that could fulfill multiple functions without sacrificing quality.
The Four-Door Cargo Hatch: Anatomy

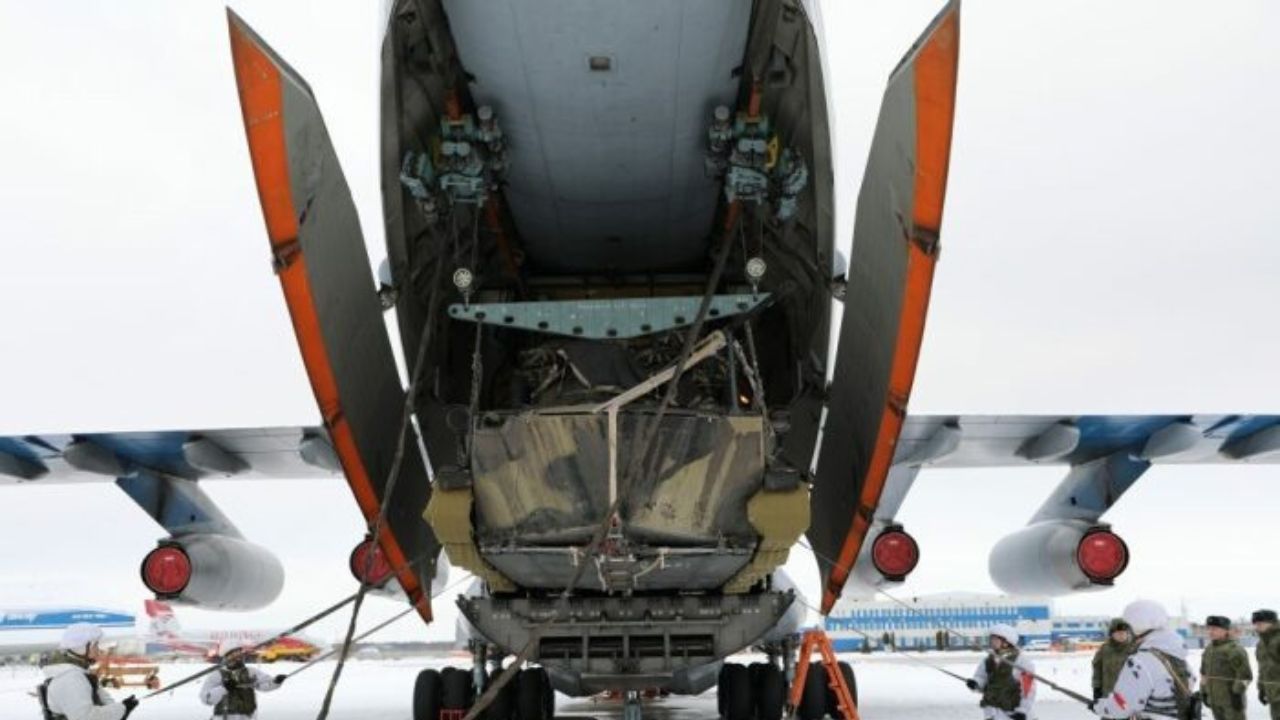

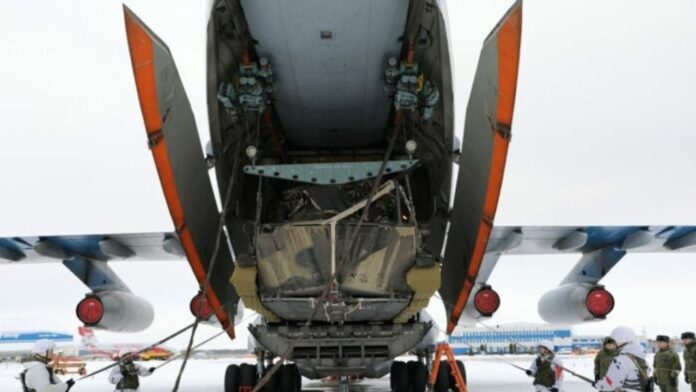

The Il-76 cargo hatch is comprised of four unique openings, each of which serves a distinct purpose. The lower door functions as a robust loading ramp that can accommodate tracked and wheeled vehicles that are driven directly into the cargo compartment. This ramp is capable of being adjusted to various angles, which enables loading to occur even when the aircraft is situated on uneven terrain.
Three upper doors are located above the ramp. Two of these doors open outward to the sides, while the fourth, central upper door, folds upward and presses closely against the ceiling of the cargo compartment. This configuration is what truly distinguishes the Il-76 from other transport aircraft. The design was not selected for its mechanical simplicity or visual symmetry, but rather to provide an unobstructed internal space for equipment that is mounted within the cargo compartment.
When the hatch is opened, the upward-folding upper door guarantees that no objects protrude into the cargo compartment. This apparently inconsequential detail is, in fact, the key that unlocks one of the Il-76’s most critical capabilities.
Core Reason for the Design of Internal Overhead Cranes
The Il-76’s cargo entrance is distinctive due to its integrated system of internal electric hoists, which are often referred to as overhead cranes. These cranes are capable of lifting and transporting large cargo without the need for external assistance, as they operate on rails that are installed within the cargo hold. The crane system’s ability to extend up to five meters beyond the rear platform is of the utmost importance, as it enables the direct lifting of cargo from the ground and its subsequent positioning within the aircraft.
This capability is exceedingly uncommon in transport aircraft of this magnitude. Forklifts, mobile cranes, or specialized loaders are used by the majority of military airlifters at the airfield. In contrast, the Il-76 was intended to be self-sufficient. The crane system is able to operate without obstruction due to the four-door hatch configuration, which ensures the requisite clearance and geometry.
However, no conventional two-door or clamshell-style ramp could accommodate such a system without compromising structural integrity or usable cargo volume. The Il-76 cargo hatch is not an accessory in this context; rather, it is a structural necessity that is propelled by its internal machinery.
Loading Heavy and Tracked Vehicles
The transfer of tracked vehicles, such as armored personnel carriers or self-propelled artillery, is one of the most challenging responsibilities for any military transport aircraft. The loading ramps and cargo floors are subjected to substantial stress due to the weight and awkward-shaped design of these vehicles. The Il-76 was engineered from the start to accommodate such loads on a regular basis.
The internal cranes, in conjunction with the reinforced ramp, enable vehicles to be either driven onboard or partially lifted and positioned with precision. This minimizes the risk of structural damage to the aircraft and reduces the loading time. The multi-door hatch guarantees that excessive exhaust gases, dust, and debris generated during loading will not build up within the fuselage in an unsafe way.
This capability becomes a decisive advantage rather than a convenience in austere environments, where ground support equipment may be unavailable or unreliable.
Structural Strength and Airdrop Operations
The Il-76 cargo port is essential for airborne delivery operations in addition to ground loading. While in flight, the aircraft is capable of parachute-dropping cargo, equipment, and even large platforms from the rear ramp. The rear fuselage and hatch mechanism are subjected to significant aerodynamic and structural demands as a result.
The segmented door design enables the precise regulation of ventilation during airdrop operations. Crews can more effectively manage turbulence and pressure changes by opening specific sections of the hatch than by using a single, large opening. The hatch and encircling fuselage are reinforced to guarantee stability during these high-stress maneuvers.
This capability is indicative of the Soviet emphasis on mass airborne operations, which prioritized simplicity, reliability, and speed over the reduction of structural weight and mechanical complexity.
A Comparison to Western Transport Aircraft
The Il-76 cargo hatch exhibits a design philosophy that is significantly distinct from that of Western heavy transport aircraft. Large, hydraulically operated rear platforms with outward-opening upper doors are employed by aircraft such as the C-17 Globemaster III and the C-5 Galaxy. These designs prioritize the rapid loading and unloading of aircraft at significant airfields that are equipped with a comprehensive ground support infrastructure.
Western designs can be regarded as preferable in terms of simplicity and speed in such environments. Nevertheless, they are devoid of the internal elevating systems that render the Il-76 self-sufficient against ground equipment. Their operational flexibility is substantially diminished in the event that forklifts or excavators are unavailable.
The Il-76 sacrifices some loading speed under optimal conditions in exchange for the capacity to operate in nearly any location. This trade-off is indicative of the strategic realities of the Soviet Union, in which airlift operations frequently took place in remote locations without developed infrastructure.
Comparison to Other Soviet Designs
Even within the Soviet aviation ecosystem, the Il-76 occupies an unique position itself. Internal cranes are also present in the significantly larger An-124 Ruslan; however, this is accomplished through pure size rather than compact engineering. Its cargo management capabilities are unparalleled; however, they come at a price: increased weight, runway requirements, and operational complexity.
The Il-76, in contrast, is a well-balanced approach. It is capable of transporting substantial military equipment while remaining compact enough to operate from runways that are shorter and less well-prepared. By incorporating sophisticated functionality into a relatively modest airframe, the cargo hatch design facilitates this equilibrium.
Modern European Approaches
The A400M Atlas, a modern European transport aircraft, is indicative of the current NATO logistics doctrine. Their cargo hatches are designed to accommodate automated handling systems, wheeled vehicles, and standardized pallets. These aircraft demonstrate exceptional fuel efficiency, avionics sophistication, and crew workload reduction.
Nevertheless, they typically do not have substantial internal lifting systems and necessitate the presence of compatible ground infrastructure. This presumption can become a constraint in combat environments with damaged facilities, remote regions, or disaster zones. The cargo hatch design of the Il-76, which is older but more self-sufficient, is still highly pertinent in these situations.
A Question of Doctrine: Superior or Inferior
The Il-76 cargo hatch’s uniqueness cannot be assessed solely in terms of superiority or inferiority. Lighter materials, digital systems, and improved aerodynamics are among the technological advantages offered by many newer aircraft. However, none rival the Il-76’s cargo management system in terms of its inherent autonomy.
The reinforced ramp, internal cranes, and four-door entrance comprise a unified system that is intended to promote independence rather than optimization. This renders the Il-76 particularly advantageous in environments with minimal infrastructure and low predictability.
In conclusion,
The cargo compartment of the Il-76 is not a peculiarity or a remnant of obsolete engineering principles. It is a deliberate, highly rational solution to a specific set of military and logistical challenges. Soviet engineers developed a transport aircraft that was capable of loading, offloading, and deploying cargo in nearly any environment by integrating a reinforced ramp, internal overhead cranes, and a four-door rear hatch.
The Il-76’s continued service in military, humanitarian, emergency, and disaster-relief missions worldwide is a direct result of this design, which was implemented decades after its first flight. Its cargo hatch is a testament to an engineering philosophy that prioritized self-sufficiency and resilience, and in numerous real-world scenarios, these attributes remain unparalleled.
