The Il-76 transport aircraft attained a major milestone in its history on August 5, 2005. The maiden flight of the modernized Il-76TD-90VD was successfully completed by test pilot Dmitry Komarov and the flight test personnel of the S.V. Ilyushin Aviation Complex at the Tashkent Aviation Production Association named after Chkalov (TAPOiCh) in Uzbekistan. The aircraft, registered as RA-76950, bore an outward appearance that was reminiscent of earlier Il-76 freighters. However, the PS-90A-76 turbofan engine, which was concealed beneath the wings, would revolutionize the future of the aircraft family.
The Il-76’s trajectory was fundamentally changed by the program, although only a small number of Il-76TD-90VD aircraft were ultimately manufactured. It illustrated that the aircraft’s commercial viability could be restored, international environmental standards could be met, and the path for the next-generation Il-76MD-90A could be paved by substituting the aging D-30KP engines with modern PS-90A-76 powerplants.
The Problem with the Original Il-76
For decades, the Il-76 was one of the most capable heavy transport aircraft in the world. It was essential for military operations, humanitarian missions, and commercial heavy-lift transportation due to its capacity to carry oversized cargo into remote, inadequately equipped airfields.
However, by the early 2000s, its greatest weakness had become impossible to ignore.
The original Soloviev D-30KP engines were no longer in compliance with the International Civil Aviation Organization (ICAO)’s increasingly stringent emission regulations. Restrictions were placed by many airports in Europe, North America, Japan, and Australia, which effectively hindered the operation of older Il-76 aircraft. The aircraft’s engines were restricting access to lucrative international cargo markets, despite the fact that it remained structurally capable.
In the absence of modernization, operators were at risk of progressively losing international business, despite the fact that they owned one of the most versatile cargo aircraft in the world.
Volga-Dnepr Led the Modernization
Volga-Dnepr, a Russian heavy-lift operator, implemented an ambitious modernization program in the early 2000s to prevent the Il-76 from becoming obsolete.
The company collaborated with the Ilyushin Aviation Complex, TAPOiCh in Tashkent, and Perm-based Aviadvigatel to develop a commercially viable version of the Il-76 that is propelled by the PS-90A-76 engine. Volga-Dnepr financed the construction of the firstaircraft due to the necessity of maintaining unrestricted access to international cargo routes for its business model.
The outcome was the Il-76TD-90VD, a civilian cargo aircraft that was specifically engineered to meet the most recent international certification standards while maintaining the Il-76 platform’s established cargo capabilities.
The PS-90A-76 Changed Everything
The installation of four PS-90A-76 high-bypass turbofan engines, which were developed by Aviadvigatel, was the centerpiece of the modernization.
The new engines were significantly more fuel-efficient and quieter than the older D-30KP engines. The operating costs of long-haul freight missions were considerably reduced as a result of the approximately 15% decrease in fuel consumption. Simultaneously, the aircraft acquired a maximum operating range of approximately 10,200 kilometers and an improved payload capacity of up to 50 tonnes under favorable operating conditions. Additionally, the upgraded engines enhanced reliability, which resulted in increased aircraft use and longer maintenance intervals.
The PS-90A-76 was also instrumental in enabling the aircraft to adhere to ICAO Chapter 4 noise standards, thereby eliminating one of the most major obstacles to Il-76 operations at major international airports. This allowed operators such as Volga-Dnepr to operate the aircraft without restriction at airports that had previously been inaccessible to older Il-76 variants.
More than just new engines
The modernization was not limited to propulsion.
The Il-76TD-90VD was equipped with upgraded avionics, which included the KUPOL-III-76M-VD integrated digital flight and navigation system. The improved cockpit facilitated compliance with modern international navigation requirements, reduced crew workload, and improved navigation accuracy. The operational capability of the aircraft was expanded to encompass airports situated at elevations of up to 3,000 meters, while the crew size was reduced to four members..
The aircraft was the first Russian transport aircraft to receive certification in January 2006, which confirmed its compliance with the Russian AP-36 aviation regulations and the noise standards outlined in ICAO Annex 16 Chapter 4. This accomplishment successfully reinstated the Il-76 platform’s unrestricted international operations and demonstrated that Soviet-designed transport aircraft could be modernized to meet the demands of modern global aviation.
Why the Program Ended
The Il-76TD-90VD did not develop into a large-scale production program, despite its technical success.
According to reports, Volga-Dnepr was the primary operator of the six aircraft that were completed. The aircraft itself was not the main obstacle; rather, it was the deteriorating industrial situation at TAPOiCh. The integrated manufacturing network that had previously sustained Il-76 production was fragmented as a result of the Soviet Union’s collapse. The Tashkent plant was gradually weakened by financial difficulties, declining production capability, and organizational challenges.
The Il-76TD-90VD production line had effectively ended by 2013, marking the end of aircraft manufacturing at TAPOiCh. As a result, the aircraft continued to be a specialized solution that was created for a particular commercial customer, rather than serving as the conventional replacement for the global Il-76 fleet.
The Legacy Lives On
The technological advancements of the civilian modernization program, despite its brief existence, served as the foundation for the Il-76 family’s subsequent development.

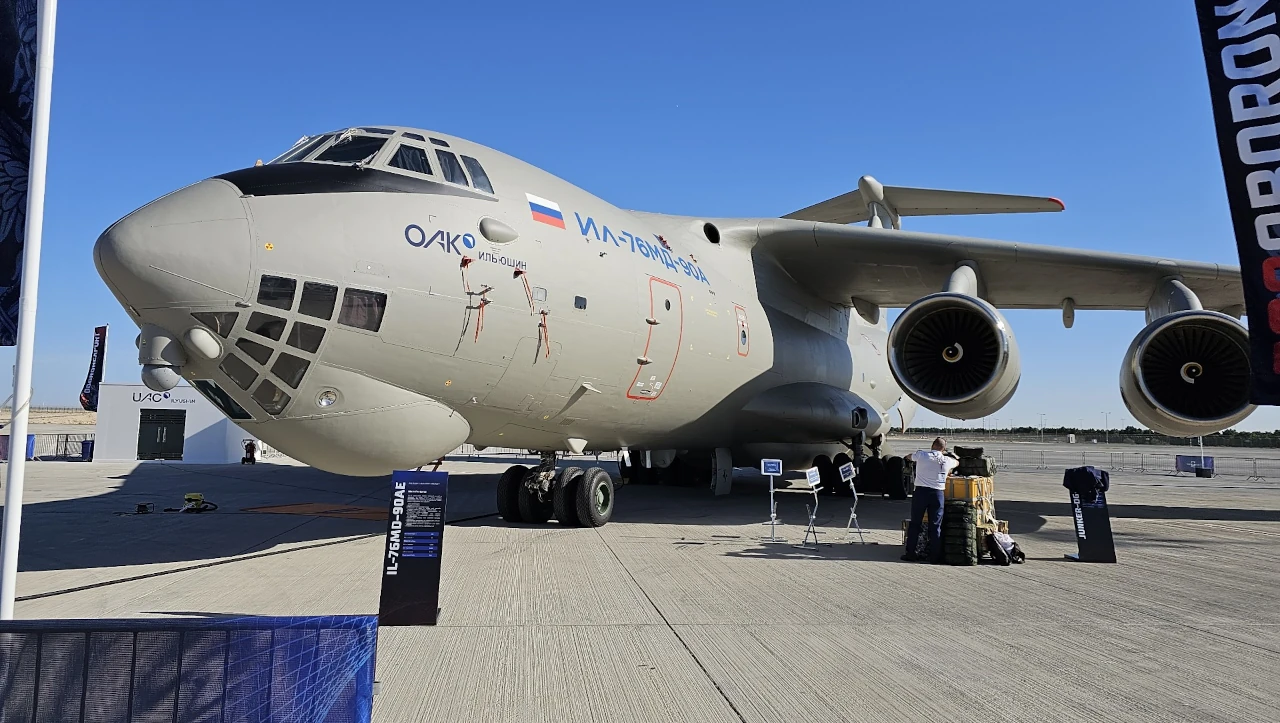

The Il-76MD-90A program was initiated by Russia, which relocated Il-76 production from Tashkent to Aviastar in Ulyanovsk. The Il-76MD-90A was predominantly designed as a military transport aircraft, with substantial structural improvements, such as a redesigned wing, strengthened landing gear, digital avionics, and updated onboard systems, in contrast to the civilian Il-76TD-90VD.
Crucially, it maintained the identical PS-90A-76 engines that had previously proven their efficacy on the Il-76TD-90VD. The engine was effectively validated and demonstrated its ability to power the next generation of Russia’s strategic airlift fleet as a result of the civilian modernization program’s success.
In the present day, the PS-90A-76 has emerged as a defining characteristic of the Il-76MD-90A, facilitating enhanced payload performance, increased fuel efficiency, reduced operating costs, and adherence to contemporary international environmental standards.
A Small Initiative with a Profound Effect
The Il-76TD-90VD appears to have been a relatively small program when measured solely by production statistics. Although it was constructed with only six aircraft, its historical significance is far-reaching.
The project exemplified the potential of a contemporary engine to revitalize a previously successful Soviet airframe, thereby improving its economic performance and regaining its global competitiveness. Engineers resolved one of the Il-76’s most significant operational constraints by substituting the aged D-30KP with the PS-90A-76. This upgrade also resulted in increased efficiency, reduced pollution, improved reliability, and modernized the aircraft’s avionics.
