Few rocket engines have enjoyed a second life as remarkable as Russia’s NK-33A. The engine, initially developed during the Soviet Union’s ambitious lunar program, has transformed from a technological achievement of the Cold War to the powerplant of contemporary launch vehicles. The NK-33A is a modernized variant of the legendary NK-33 engine, developed by UEC-Kuznetsov, a division of the United Engine Corporation under Rostec. It preserves one of the most remarkable achievements of Soviet rocket engineering while adapting it to modern space missions.
The engine’s origins can be traced back to the late 1960s, when the Soviet Union was in the process of developing the formidable N1 Moon rocket, which was designed to transport cosmonauts to the lunar surface. Under the guidance of the esteemed engine designer Nikolai Dmitrievich Kuznetsov, the NK-33 was developed to deliver exceptional thrust while simultaneously maintaining an unparalleled thrust-to-weight ratio. Although the N1 program was ultimately terminated due to a series of abortive launches, the engines themselves were engineering masterpieces with enduring technological relevance that would endure for decades.
The Engine was Preserved by Kuznetsov’s Vision
Nikolai Kuznetsov’s extraordinary decision is largely responsible for the NK-33’s survival. He instructed the meticulous preservation of the completed engines and production documentation, rather than permitting their destruction following the lunar program’s cancellation.
This decision would be considered visionary. For years, dozens of engines, manufacturing equipment, technical drawings, and production documentation that had been completed were securely stored in controlled environments. Preserving the engines and documentation allowed engineers to modernize the design for a different launch vehicle decades later, eliminating the need to recreate the engine from scratch. Instead of becoming a neglected relic of the Soviet space race, this item became one of the most remarkable examples of engineering continuity in the world.
Advanced Closed-Cycle Design
The NK-33A’s sophisticated propulsion architecture is one of the reasons it continues to garner admiration from aerospace engineers. The engine is widely considered to be one of the most thermodynamically efficient configurations in liquid rocket propulsion, as it uses a closed-cycle staged combustion system that includes the afterburning of the gas generator exhaust.
The staged combustion cycle redirects nearly all combustion products back into the primary combustion chamber, unlike simpler open-cycle engines that vent turbine exhaust overboard. This enables exceptionally high chamber pressures and enhances efficiency by allowing nearly every kilogram of propellant to contribute to thrust production.
The NK-33A exhibits exceptional performance, even by the most stringent contemporary standards. At sea level, the engine produces approximately 154.5 tonnes of thrust and has a dry mass of approximately 1,240 kilograms. It is one of the most efficient kerosene-liquid oxygen rocket engines ever developed, generating a specific impulse of 331 seconds. Its remarkable thrust-to-weight ratio remains competitive with numerous engines that were developed decades later.
Designed for Dependability
The NK-33A’s reputation was established through its exceptional reliability, although performance figures frequently dominate discussions of rocket engines. A comprehensive testing campaign that accumulated over 12,000 seconds of hot-fire operation was conducted on the engine prior to its entry into operational service.
This total represents approximately sixty times the engine’s normal operating duration during an actual launch. The engine was subjected to an extensive endurance margin by engineers, which demonstrated both long-term operational stability and structural durability, as a first-stage combustion typically lasts approximately 200 seconds.
These exhaustive ground tests not only confirmed the engine’s efficacy but also its capacity to endure repeated thermal and mechanical stresses. The NK-33 family was established as one of the most reliable liquid rocket engines produced by the Soviet and later Russian aerospace industries as a result of this rigorous qualification.
From the Moon Program to the Soyuz-2.1v

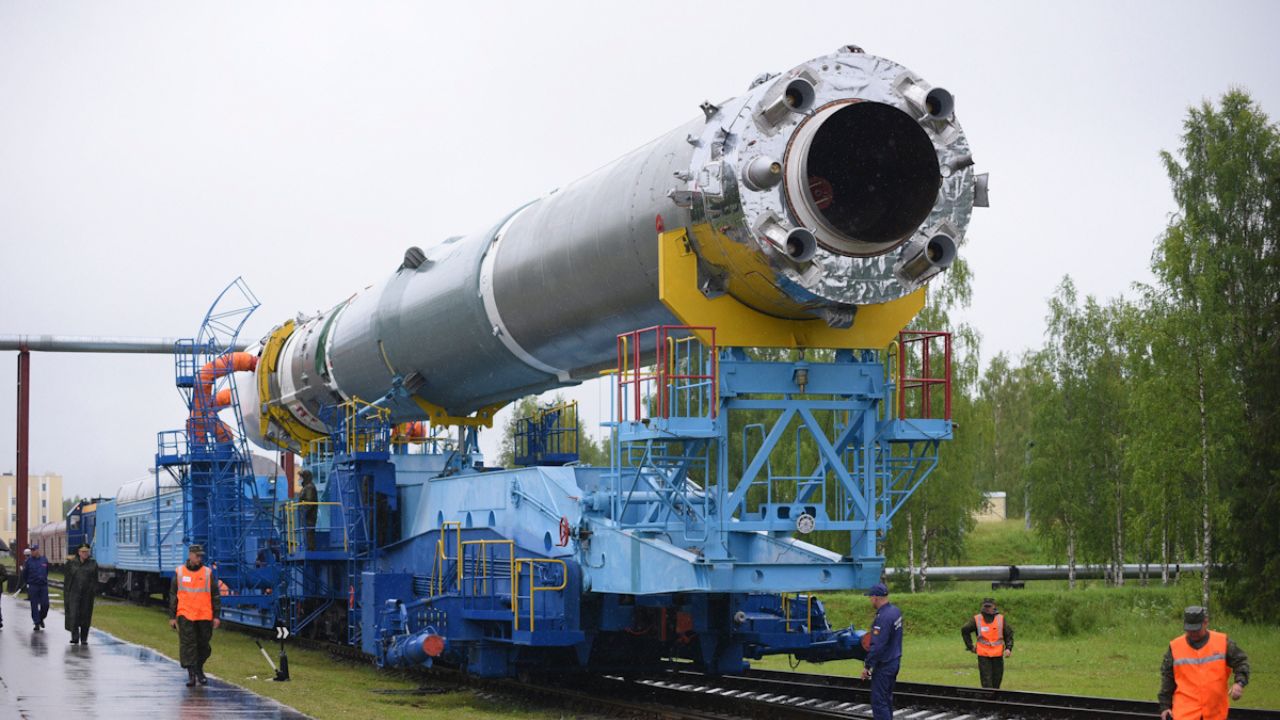

The NK-33 was modernized by Russian engineers to the NK-33A configuration for installation on the Soyuz-2.1v light-class launch vehicle.
The modernization updated control systems, integrated modern electronics, and improved essential features while preserving the engine’s effective core architecture.
The NK-33A powered the inaugural Soyuz-2.1v launch from the Plesetsk Cosmodrome in December 2013. The engine’s operational return after decades of storage was initiated by the successful mission. Over the course of subsequent launches, the engine consistently exhibited reliability and performance, effectively launching both military and civilian satellites into orbit.
The Soyuz-2.1v launch vehicle’s primary first-stage engine was the NK-33A, which was introduced into regular operational service after a succession of successful qualification missions. The remarkable quality of the original Soviet engineering and the importance of preserving advanced technologies rather than discarding them were underscored by its successful return.
A Symbol of Engineering Excellence
The NK-33A symbolizes the enduring strength of Soviet engineering principles.
The aerospace engineers worldwide continue to be intrigued by its exceptional reliability, exceptional efficiency, advanced staged-combustion cycle, and lightweight construction. Although the engine was originally designed over fifty years ago, it continues to be capable of accommodating the requirements of contemporary orbital launch missions.
Its ongoing operation serves as an illustration that exceptional engineering can endure across generations. The NK-33A demonstrates that a well-designed engine, built with precision and supported by rigorous testing, can remain relevant for decades, despite the rapid evolution of space technology. Today, each successful Soyuz-2.1v launch serves as a reminder that some of the most significant achievements in the field of aerospace are not only about innovation but also about the preservation and refinement of concepts that were decades ahead of their time.
