The revival of the Il-114-300 regional turboprop, which is built in Russia, is not just associated with the modernization of the airframe, avionics, and engines. The aircraft’s passenger seating system is one of its most critical components, yet it is often overlooked. Seats are among the most technically challenging interior components of any commercial aircraft. They must be capable of withstanding crash loads, be resilient to fire and smoke, be comfortable for passengers, be simple to maintain, and be able to remain in service for decades. Additionally, they must be lightweight.
Russia made an effort to localize nearly every important component of the Il-114-300, including the cabin interiors. This project has resulted in the creation of new passenger seats by Russian aviation interior manufacturers. These manufacturers currently provide seating systems for aircraft models, including the Il-114-300, SJ-100, MC-21, Tu-214, and Il-96. In comparison to the interiors of Russian regional aircraft from previous generations, these seats represent an important progress in technology.
The Role of Seats in a Modern Regional Airliner
Upon first look, an aircraft seat appears to be a relatively straightforward item. In reality, it is a structure that has been meticulously engineered to meet the rigorous aviation certification requirements. Fuel consumption and operating costs are directly influenced by each kilogram of additional weight. Simultaneously, seats must endure years of continuous airline service, passenger harm, repeated pressurization cycles, and emergency landing loads.
The Il-114-300 is intended to accommodate 52 to 68 passengers, based upon the cabin configuration. The aircraft employs a 2-2 seating configuration, which excludes the middle seat that is common in larger narrow-body jets. Consequently, each passenger is assigned either a window or aisle seat. This configuration is similar to that of ATR-72 aircraft, which also use a two-by-two seating arrangement for regional operations.
The number of usage cycles for seats is high due to the frequent operation of multiple short flights by regional aircraft a day. As a result, airlines require products that are both lightweight and resilient enough to endure years of service without incurring substantial maintenance expenses.
Il-114-300 Seat Design
The manufacturing process starts prior to the production of any tangible material component. Engineers initially generate digital models by using sophisticated computer-aided design software. Each structural member, mounting bracket, armrest, seatback, tray table, and fastening point is represented in three dimensions.
Before manufacturing starts, the entire seat is developed as a digital product. Structural fatigue, passenger loads, accident conditions, and maintenance requirements are all simulated by engineers. While ensuring passenger convenience and adhering to evacuation regulations, each component must be accommodated within the cabin dimensions of the Il-114-300.
Designers can now detect stress concentrations and structural vulnerabilities before the production of physical prototypes using advanced software. As a result, certification timelines are shortened and development costs are substantially reduced.
Construction of the Composite Structure
The extensive use of composite materials is one of the notable features of contemporary Russian aircraft seating. In order to reduce weight, engineers have increasingly transitioned from conventional all-metal structures to carbon-fiber components.
Carbon-fiber fabrics or prepreg materials start the manufacturing process. These linens are incredibly lightweight, yet they contain reinforcing fibers that offer exceptional strength. In accordance with precision engineering specifications, layers of material are meticulously arranged within molds.
The structure uses a variety of fiber orientations to accommodate the loads that aircraft seating experiences from various directions. Certain sections are required to withstand vertical compression stresses, while others must withstand horizontal or torsional forces.
Once the layers have been positioned, the assembly is subjected to meticulously regulated temperature and pressure conditions during the curing process. The fibers are bonded into a rigid structural component as the resin matrix hardens during this process.
The composite structure that results is characterized by its low mass and high strength. Composite parts are often made as single sections, which simplifies production and reduces the need for fasteners, in contrast to traditional metal assemblies.
Significant weight reduction is among the most critical objectives of seat manufacturing. Over the course of thousands of flight hours, each kilogram saved enhances aircraft efficiency and decreases operating costs.
Production of Metal Components
Despite the increasing use of composites, aircraft seats continue to rely heavily on precision metal components.
Typically, aluminum or titanium alloys are used to manufacture critical load-bearing components, including seat-track attachments, hinges, armrest supports, reclining mechanisms, and structural connectors. While remaining relatively lightweight, these metals offer exceptional strength.
The initial step in the production process is the implementation of computer numerical control machining. CNC milling machines are capable of cutting metal slabs into intricate shapes with an extraordinary level of precision. Brackets, mounting fittings, and support structures are manufactured with exceedingly precise tolerances.
Cylindrical components, such as shafts, bearings, and fastening elements, are manufactured by turning machines. These components are indispensable because they facilitate the seamless operation of moving mechanisms over the course of several years of airline operations.
Each component is examined following the completion of the machining process. Before parts are authorized for assembly, technicians evaluate their dimensions, surface quality, and structural integrity.
Remarkably stringent precision requirements are enforced. Installation accuracy and certification conformance can be influenced by even minor dimensional deviations.
Production of Fire-Resistant Cushions
The design of cushions significantly influences passenger comfort. The complexity of aircraft seat cushions exceeds that of typical furniture foam.
The manufacturing process starts with foam materials that have been specifically engineered for aviation applications. These materials must adhere to stringent regulations regarding toxicity, fume generation, and fire resistance.
A single cushion is often built by combining multiple layers of polyurethane with varying densities. Softer upper layers increase comfort, while stiffer lower layers offer structural support and assist in the absorption of impact energy during emergency landings.
Each cushion is meticulously crafted by engineers to provide passengers with the necessary support during both brief regional flights and longer journeys. Passengers may remain seated for an extended period of time, rendering pressure distribution an essential factor.
The cushions are later covered with upholstery materials that have been certified. Although airlines are permitted to choose from a variety of colors, patterns, and branding elements, all fabrics must adhere to aviation safety regulations.
Before they are authorized for use, these materials undergo rigorous testing. In order to guarantee that certification standards are met, flame propagation, heat release, fume density, and toxicity are all assessed.
Seat Structure Assembly
Final assembly commences upon the completion of composite components, metal parts, cushions, and upholstery.
The first phase is for technicians to build the main seat frame. Aerospace-grade fasteners and connectors are used to connect structural members. Armrests, tray tables, literature pockets, seatbelts, and reclining mechanisms are subsequently implemented.
Detailed engineering documentation is followed to in every stage. Even apparently straightforward tasks, such as the installation of a tray table, necessitate strict adherence to manufacturing procedures.
After the structural assembly has been completed and inspected, the seat cushions are affixed. The final appearance is achieved by installing decorative trim and upholstery panels.
Quality-control specialists conduct continuous inspections of the assembly to guarantee that it adheres to the design specifications.
Strength and Crash Safety Testing
One of the most challenging phases of aircraft seat development is safety certification.
Passenger seating of the present day must endure rigorous crash-load simulations that simulate emergency landing conditions. Complete seat assemblies are subjected to sudden deceleration events and powerful acceleration forces during these evaluations.
Structural deformation, occupant loading, seatbelt performance, and attachment-point integrity are all monitored by sensors. The results are analyzed by engineers to guarantee that passengers will be safeguarded in the event of a survivable accident.
The seats must also endure long-term fatigue testing. Seat structures undergo continuous loading and offloading as a result of the thousands of takeoff-and-landing cycles that regional aircraft execute annually.
Seats are subjected to flammability testing, smoke-toxicity assessments, vibration analysis, and environmental testing in addition to crashworthiness evaluations. Manufacturers are required to demonstrate that the seats will function safely in a diverse array of operating conditions.
A seating system can only be certified for installation on commercial aircraft after effectively passing these rigorous tests.# Quality Control and Digital Inspection
Digital inspection technologies are used extensively in the production of modern aircraft seats.
Laser scanning systems and coordinate measuring devices are used to quantify completed components. These devices compare the physical components with their original digital representations and detect even the slightest deviations.
A comprehensive quality record for each production order is generated by electronically storing inspection data. This enables manufacturers to preserve traceability throughout the product’s life cycle.
Quality-control departments supervise each phase of the production process, from the procurement of basic materials to the final assembly. Before installation, any component that does not satisfy the specifications is eliminated from the manufacturing process.
This rigorous methodology is essential due to the potential impact of even the smallest defects on long-term reliability and certification compliance.

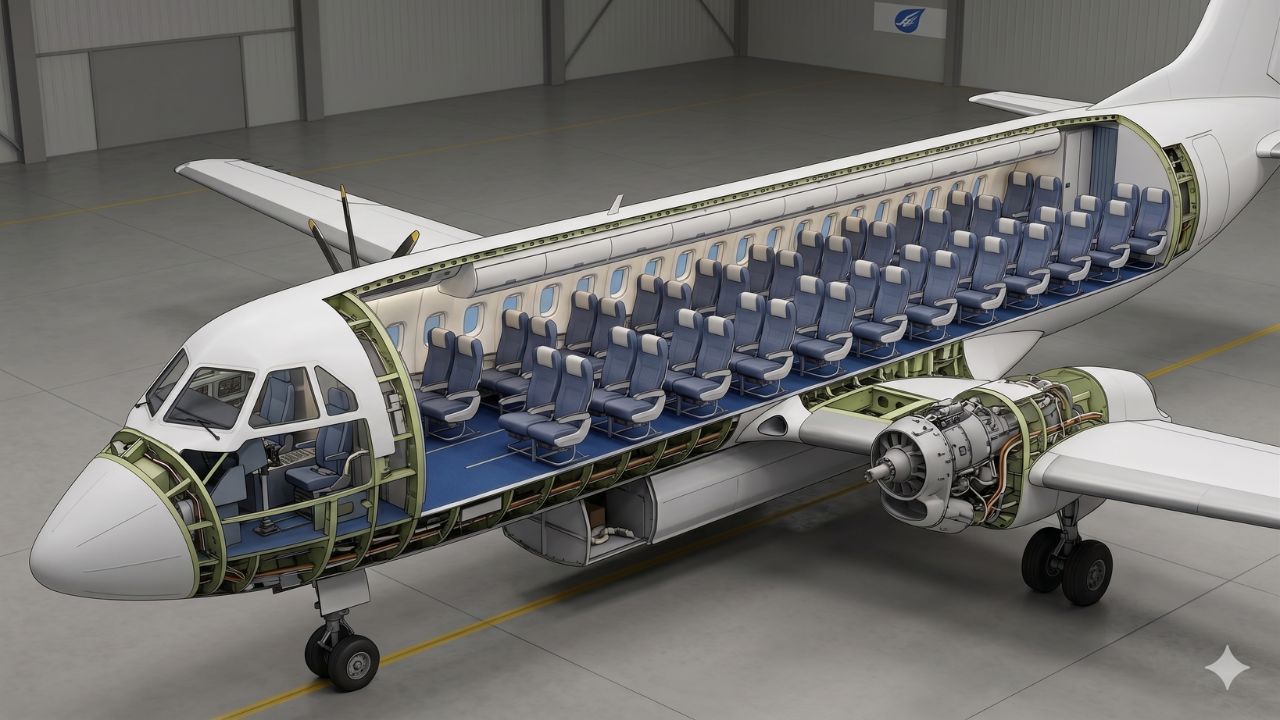

Installation within the Il-114-300 cabin
The seats are transported to aircraft assembly facilities following their completion of assembly and inspection.
The seating rows are installed by technicians onto floor-mounted seat tracks that are built into the cabin structure. These tracks are intended to transmit loads from the seats to the aircraft fuselage during emergency landings or turbulence.
The installation procedure also involves the verification of aisle width, seat pitch, emergency-exit access, and alignment with cabin monuments, such as galleys and lavatories.
The seats are incorporated into the aircraft’s certified interior system upon their installation. The aircraft undergoes additional inspections prior to its entry into service.
The Manufacturing Process of ATR-72 Seats
Although the supply chain differs substantially, the manufacturing philosophy of ATR-72 seating systems is broadly similar.
The ATR-72 has emerged as the most successful regional turboprop in the world, and it is currently in service with airlines in numerous countries. ATR has established a comprehensive international supplier network that offers seating solutions that are customized to the specific needs of each airline over the course of decades of production.
Aluminum structures, composite components, aviation-grade upholstery materials, and certified foams comprise modern ATR seats. The primary objective is to reduce the plane’s weight while simultaneously ensuring passenger convenience and durability.
The ATR-72, like the Il-114-300, is designed to operate in challenging regional environments with frequent flight cycles. Consequently, seat manufacturers prioritize the rapid replacement of worn components and the simplicity of maintenance.
Additionally, ATR cabin interiors typically integrate advanced acoustic materials to increase passenger comfort and minimize turboprop noise levels.
Customized seating arrangements from approved suppliers are often selected by airlines that acquire ATR aircraft. This gives the ability to customize the cabin configuration, seat pitch, branding, and comfort levels.
Comparison of the Il-114-300 and ATR-72 Methodology
The main difference between the two aircraft is not in terms of passenger convenience, but rather in terms of industrial strategy.
A sophisticated international ecosystem that has been established over decades of uninterrupted production is advantageous to the ATR-72. Airlines have the option of selecting from a variety of seating manufacturers that are globally recognized and customizing their compartment layouts to meet operational needs.
In contrast, the Il-114-300 is a component of a more broad initiative to create a Russian aviation supply chain that is essentially self-sufficient. Therefore, seat development has evolved into a critical element of national industrial policy, rather than a mere procurement decision for cabin interiors.
Both aircraft pursue identical objectives from a technical standpoint. Their seating systems must be economical to maintain, durable, comfortable, crashworthy, and lightweight. Both are increasingly dependent on digital engineering techniques and composite materials to enhance efficiency and reduce weight.
Nevertheless, Russian manufacturers have prioritized the domestic production of cutting-edge seating technologies, such as locally developed certification programs and carbon-fiber structures. This is indicative of a more comprehensive initiative within the Il-114-300 project to augment the proportion of domestically manufactured components.
In conclusion,
The seats that are installed on the Il-114-300 are not just ordinary passenger furnishings. Sophisticated aerospace products are developed through a combination of digital engineering, composite fabrication, precision machining, advanced materials science, and rigorous safety testing.
Strict aviation standards govern each phase of production, from the initial computer model to the final installation within the aircraft cabin. Extensive testing guarantees passenger safety, precision-machined metal components provide strength, specialized cushioning ensure comfort, and composite structures reduce weight.
Despite the fact that the ATR-72 seating systems are derived from a long-standing international supply network, and the Il-114-300 is increasingly reliant on domestic manufacturing capabilities, both aircraft adhere to the same fundamental engineering principles. While remaining lightweight, safe, and comfortable, their seats must endure years of intensive operation.
The seat serves as a microcosm of contemporary aircraft manufacturing in numerous respects. Travelers are often unaware of the significant amount of engineering, testing, precision production, and technological innovation that goes into each passenger flight. However, this work is crucial for the safe and efficient operation of regional airliners.
