An ambitious new concept for a heavy amphibious aircraft has been proposed by engineers at Moscow Aviation Institute (MAI). This aircraft is capable of transporting up to 100–120 tons, placing it in the same operational class as large military transport aircraft. The unconventional aerodynamic configuration, which is centered around a closed, diamond-shaped wing and a fuselage that actively contributes to lift, is what makes this project particularly striking, in addition to its payload ambition.
At a time when global aviation is investigating efficiency gains, hybrid configurations, and operations in adverse environments, this Russian concept is a unique attempt to combine multiple aerodynamic innovations into a single platform. It integrates components of ground-effect dynamics, seaplane engineering, and composite lifting-body design into a single, cohesive system.
The Diamond Wing: A Closed-Loop Aerodynamic Shift

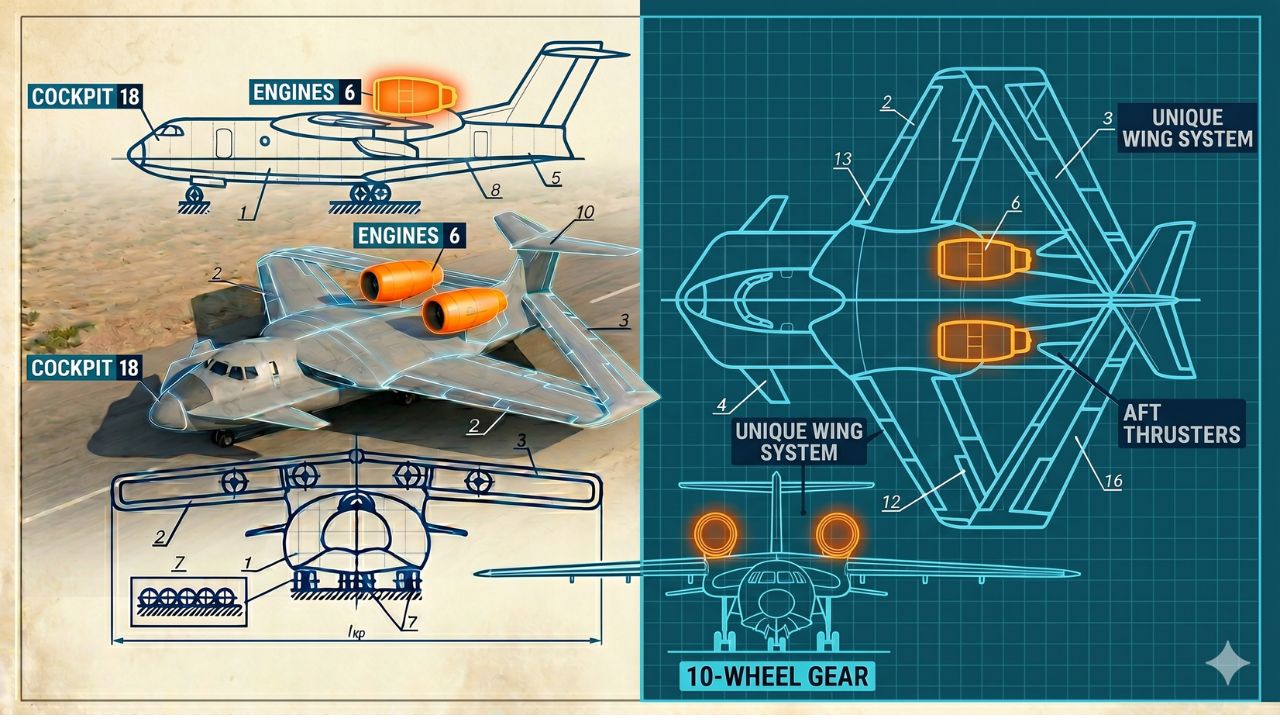

The MAI amphibian is most distinguished by its closed wing, which is shaped like a rhombus or diamond. In contrast to conventional aircraft wings, which extend outward from the fuselage in a linear configuration, this design forms a continuous spiral that connects the forward and rear wings. This results in the formation of a closed aerodynamic circuit, which considerably reduces wingtip vortices, which are one of the primary sources of induced drag in conventional aircraft.
Vortices at the extremities of standard aircraft are the result of air pressure differences between the upper and lower wing surfaces, which result in the loss of energy. MAI engineers intend to enhance lift-to-drag efficacy by minimizing these vortices through the closure of the wing loop. Experimental implementations have demonstrated promising results in the reduction of fuel consumption and the enhancement of aerodynamic stability, and this principle has been the subject of extensive global research for decades.
The closed-wing concept is not wholly new; however, it has been rarely implemented on a grand scale. In the past, efficiency improvements were demonstrated in small UAVs and concept aircraft. However, the design is being scaled to a 100-ton class vehicle, which introduces structural and engineering challenges that MAI appears to be resolving through an integrated wing-fuselage architecture.
Fuselage as a Lifting Body
Another crucial innovation is the fuselage itself. The fuselage in conventional aircraft predominantly functions as a payload container, with minimal aerodynamic contribution. Nevertheless, the fuselage serves as a lifting surface in this design, which contributes a substantial amount to the overall lift.
This concept is consistent with the research on composite wing bodies (BWBs) and lifting bodies that has been conducted by organizations such as NASA and aircraft manufacturers like Airbus. The aircraft’s payload capacity is not compromised, as the fuselage is designed to contribute to lift, thereby reducing reliance on wing area alone. This design facilitates more condensed dimensions.
This lifting fuselage is further integrated with amphibious requirements in MAI’s approach. The wide, stable body not only generates lift but also improves buoyancy and water stability. This dual-purpose design eliminates the necessity for external floats, which are commonly employed in seaplanes to maintain balance on water but add structural complexity and drag.
Water Operations and Hydrodynamics
A wholly distinct set of challenges is introduced when operating from water, as opposed to land-based aviation. The MAI concept incorporates a step, which is referred to as a “redan” in Russian, and a V-shaped superstructure with a high deadrise angle. This phase is essential in the design of seaplanes, as it enables the aircraft to transition smoothly from displacement mode to planing mode by breaking water adhesion, thereby reducing hydrodynamic drag during takeoff.
This characteristic resembles the Beriev Be-200, a classic amphibious aircraft that also relies on a stepped hull for efficient water takeoff. Nevertheless, the MAI design potentially enables operations in harsher waters and heavier payload conditions by scaling this principle to a much larger platform.
The absence of external floats is particularly noteworthy. The lateral stability of traditional amphibians is dependent on wing-mounted floats. However, MAI’s wide fuselage base is sufficiently stable on its own. This enhances both aerodynamic and operational efficiency by reducing drag and simplifying the structure.
Ground Effect and Low-Altitude Efficiency
The design’s use of ground effect at low altitudes is one of its most interesting aspects. The ground effect is a phenomenon that occurs when an aircraft flies in close proximity to a surface, typically within one wingspan of the ground or water. This results in an increase in lift and a reduction in drag.
Soviet-era ekranoplans, including the Lun-class ekranoplan, have famously used this principle. While those vehicles were intended to operate almost exclusively in ground effect, the MAI amphibian indicates that it uses it as an additional efficiency mode rather than a primary operating regime.
The aircraft has the potential to substantially reduce fuel consumption using the ground effect during takeoff and low-altitude cruise. This would be especially beneficial for long-range missions that overfly water or in remote regions where petroleum logistics are difficult.
Compact Dimensions and Payload Ambition
The aircraft’s projected payload capacity of 100–120 tons within a comparatively compact wingspan of approximately 50 meters is perhaps the most striking claim. For context, this positions it in the same category as heavy transport aircraft such as the Ilyushin Il-76, which has been a reliable workhorse of military and cargo aviation for decades.
The achievement of such a payload capacity without a substantial increase in size indicates a structural and aerodynamic design that is highly efficient. The aircraft may be able to bear a greater amount of weight in relation to its dimensions than traditional designs due to the combination of a lifting fuselage, closed wing, and reduced drag.
Additionally, this compactness offers operational benefits. Operating in constrained environments, such as undeveloped coastal regions, rivers, and remote water bodies, is facilitated by a reduced footprint.
Differences with International Concepts
Nevertheless, comparable concepts have been examined by multiple experimental and conceptual aircraft worldwide, however rare in combination.
In Europe, the German Aerospace Center has conducted research on closed-wing or box-wing configurations. The center has tested box-wing aircraft to improve their efficacy. These designs demonstrated a decrease in induced drag; however, they frequently encountered structural complexity challenges.
The objective of blended wing body designs, which are being developed by NASA and Airbus, is to optimize payload distribution and fuel efficiency. Nevertheless, these are primary aircraft that are land-based and don’t apply to amphibious operations.
Amphibious heavy-lift aircraft, such as those developed by Beriev Aircraft Company, are aircraft that prioritize water operations while maintaining conventional wing designs. For example, the Be-200 is highly effective for transport and firefighting, despite operating in a significantly reduced payload class.
The MAI concept tries to integrate all of these methodologies—closed wing, lifting body, amphibious superstructure, and ground effect—into a single platform. This degree of integration is exceedingly uncommon and signifies an immense conceptual departure.
Alternative Solutions and Folded Wings
Another area of comparison is aircraft with collapsible or variable geometry wings, which are often used to improve operational flexibility and storage capacity. For instance, naval aircraft use telescoping wings to accommodate aircraft carriers. Nevertheless, folding mechanisms generally result in an increase in weight and complexity, rather than a fundamental improvement in aerodynamic efficiency.
To maximize performance across various flight regimes, some modern models examine adaptive or morphing wings. While these technologies provide flexibility, they do not resolve the fundamental inefficiencies of induced drag in the same manner as a closed-wing system.
As opposed to mechanical adaptability, the MAI design emphasizes inherent aerodynamic efficacy. Its structural design eliminates wingtip vortices, thereby reducing the necessity for intricate moving parts.
Operational Advantages in Remote Regions
Operation in remote or underdeveloped regions is one of the most appealing applications for this aircraft. A critical logistics support could be provided by an amphibious heavy-lift aircraft in regions that lack runway infrastructure, such as sections of Siberia, Africa, or island chains.
The necessity for costly runway construction is eliminated by the capacity to take off and land on water. This, in conjunction with the aircraft’s substantial payload capacity, renders it appropriate for the transportation of military assets, humanitarian assistance, or heavy equipment to remote locations.
In addition, the design is consistent with the growing interest in Arctic and maritime operations, which are characterized by challenging environmental conditions and limited traditional infrastructure.
Feasibility and Engineering Challenges
The MAI concept is confronted with considerable engineering challenges, despite its potential. Particularly at large scales, closed-wing structures must endure intricate aerodynamic and structural stresses. It is a significant challenge to maintain weight efficiency while ensuring structural integrity.
Another critical factor is hydrodynamic efficiency. Precision design is necessary to prevent excessive drag or instability during takeoff and landing when scaling a stepped hull to support a 100-ton payload.
The complexity of the design is also increased by the integration of multiple advanced concepts, including the lifting fuselage, closed wing, and ground effect. Extensive testing and validation are necessary to ensure that each system operates seamlessly in conjunction with the others.
A Future Vision for Amphibious Aviation
The MAI diamond-wing amphibious aircraft is a bold effort to reevaluate the operational capabilities of large transport aircraft. It provides a potential route to more sustainable and versatile aviation by integrating amphibious capability with aerodynamic efficiency.
This concept has the potential to revolutionize heavy-lift operations, particularly in regions with limited infrastructure, if it is effectively developed. Additionally, it underscores a more extensive aviation trend toward composite designs that are characterized by the blurring of traditional categories.
The project emphasizes the significance of innovation in meeting the changing needs of global logistics and transportation, even as it remains in the conceptual phase. Regardless of whether it is produced, the concepts it introduces are likely to have an impact on the development of future aircraft.
MAI’s approach is a reminder that radical rethinking of fundamentals—such as wing geometry and fuselage function—can open wholly new possibilities in an industry that is frequently constrained by incremental improvements.
