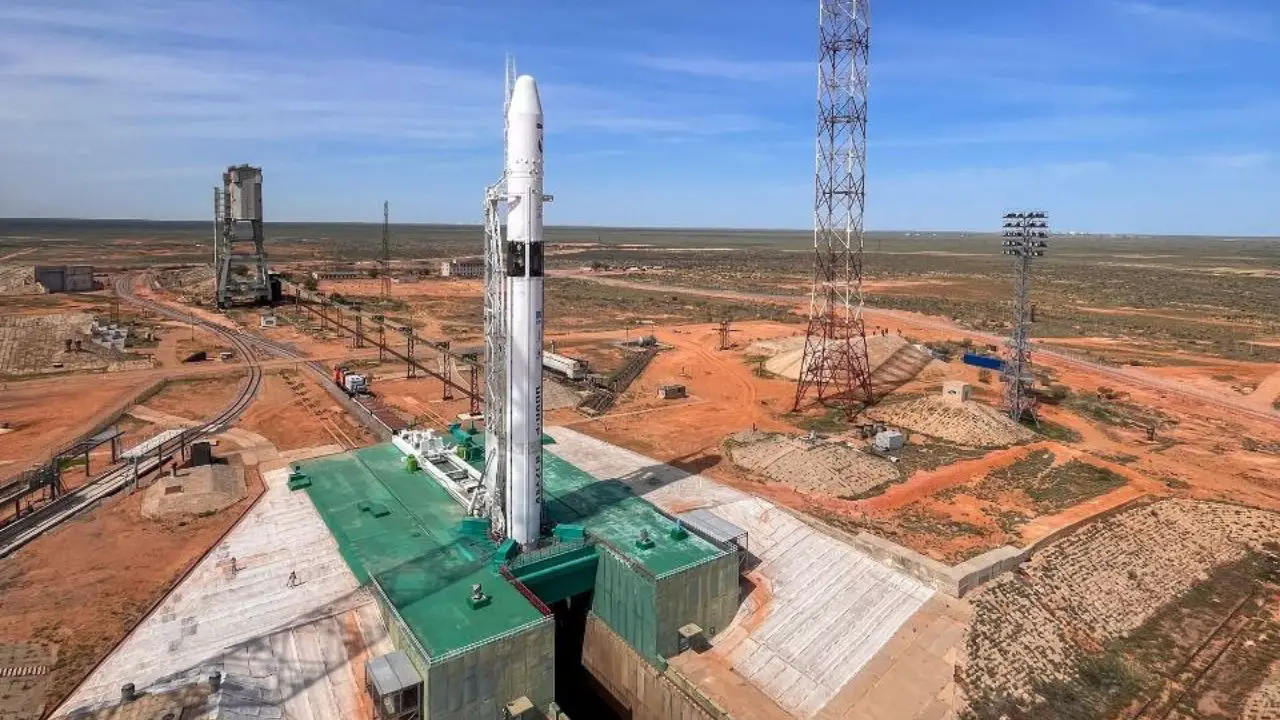

April 30th was an important date for the Russian space industry. The Soyuz-5, the most recent medium-class launch vehicle, was launched for the first time from Site 45 at the Baikonur Cosmodrome at 21:00 Moscow time. The flight-design testing phase of a rocket that is already being positioned as a cornerstone of Russia’s future space ambitions was brought about by this launch.
The event garnered attention not only within the aerospace sector but also on a global scale. The rocket is one of the most closely observed developments in global launch systems due to its ability to deliver large payloads into orbit, a record-breaking engine, and modern engineering solutions.
The First Flight: The Test’s Development
The inaugural launch of Soyuz-5 was conducted in a fully nominal configuration, which served as a key indication of the rocket’s readiness for additional testing. The first and second stages executed as anticipated, without any anomalies, as indicated by Roscosmos’ official reports.
The rocket was equipped with a mass-and-dimension simulator payload. It was effectively positioned on a predetermined suborbital trajectory and subsequently re-entered the Earth’s atmosphere, splashing down in a designated region of the Pacific Ocean. This region had been previously approved for safety, thereby guaranteeing that there would be no disruption to maritime or aviation routes.
Test missions of this nature are customary for new launch vehicles. Engineers use dummy payloads to assess performance rather than risking costly satellites. In essence, this flight functioned as a thorough system evaluation, which included onboard software, structural integrity, and propulsion.
The Reason for the Uniqueness of This Launch
The launch was characterized as “special” by the director of Roscosmos, Dmitry Bakanov, and for good reason. It was not only the inaugural flight of a new rocket, but also the introduction of a next-generation propulsion system that redefines the standards for efficiency and power.
The RD-171MV engine, which is widely considered the most powerful liquid-fueled rocket engine in the world, is positioned at the core of the Soyuz-5. It represents a major development in propulsion technology, with a thrust of approximately 800 tons.
This engine is not just an incremental improvement. It is a profoundly modernized evolution of the renowned RD-170 family, which includes digital control systems, advanced materials, and enhanced reliability.
The rocket is propelled by the “Tsar Engine”
The RD-171MV, which is affectionately referred to as the “Tsar Engine,” stands out by its exceptional performance. Although it weighs approximately 10 tons, it produces a thrust that exceeds 800 tons, demonstrating an exceptional power-to-weight ratio.
The engine uses a cost-effective and proven propellant combination of liquid oxygen and kerosene (RP-1) that effectively balances operational efficiency with performance. This decision is indicative of a strategic emphasis on affordability and dependability.
Extensive ground testing, including long-duration firing tests, was conducted on the engine prior to its integration into the Soyuz-5. These tests verified the engine’s suitability for flight. It is expected that it will serve as a critical component of future heavy and super-heavy launch systems, in addition to its effectiveness with this particular rocket.
Soyuz-5’s Technical Specifications and Design
The Soyuz-5 is a two-stage medium-lift rocket that was developed as a modern alternative to outdated launch systems and, in part, as a successor to the Zenit rocket, which was manufactured in Ukraine.
The vehicle has a core diameter of approximately 4.1 meters and a launch mass of approximately 530 tons. It stands at a height of approximately 62–66 meters. These dimensions establish it as a member of the medium-class category, although it provides exceptional performance.
The RD-171MV engine powers the first stage, while the RD-0124MS engine, which operates on a refined hydrocarbon variant and liquid oxygen, powers the second stage. The payload capacity is improved by the combination of power and efficiency that these stages provide.
The rocket also features sophisticated avionics systems, including fiber-optic gyroscopes and onboard computing units, as well as modern materials, such as high-strength aluminum alloys. These enhancements enhance the precision, reliability, and overall success rates of missions.
Mission Capabilities and Payload Capacity
The payload capacity of the Soyuz-5 is one of its most notable characteristics. A versatile platform for a diverse array of missions, the rocket is capable of delivering up to 17 tons to low Earth orbit.
Its capabilities are further improved by the addition of upper stages. It has the capacity to launch approximately 5 tons into geostationary transfer orbit and approximately 2.5 tons into geostationary orbit. This adaptability enables it to facilitate the operation of telecommunications satellites, scientific missions, and potentially deep-space exploration.
Cost efficiency is another major advantage. Russia’s competitiveness in the global launch market may be improved by the design’s emphasis on reduced launch costs in comparison to previous systems.
International Cooperation and the Baiterek Project
The Baiterek Project, a joint Russian-Kazakh effort, includes the development of Soyuz-5. This initiative is dedicated to the modernization of the launch infrastructure at Baikonur and the introduction of rockets that are more efficient and environmentally friendly.
The objective of the project is to replace obsolete launch systems with sophisticated vehicles that can satisfy current requirements. In this vision, Soyuz-5 occupies an indispensable position.
Baikonur continues to be one of the most historically significant and strategically essential launch sites in the world, despite the emergence of newer spaceports. The continued relevance of Soyuz-5 in global space operations is underscored by its launch from this location.
A Long Journey to the First Launch
The development of Soyuz-5 has been a multi-year effort. Around 2016, the “Phoenix” program, which was designed to develop a launch vehicle of the future, provided momentum to the project.
At first, the initial launch was anticipated to occur by the conclusion of 2025; however, delays resulted in the launch being postponed until 2026. The primary reasons for these delays were the inclusion of new testing requirements, infrastructure upgrades, and system refinements.
Engineers prioritized safety and reliability over expediting the process. This circumspect approach appears to have been successful, as evidenced by the successful launch.
Significance for Upcoming Space Programs
Soyuz-5 is not simply an additional rocket; it serves as a foundation for future growth. It is expected that it will facilitate a diverse array of missions, such as the deployment of large orbital stations, prospective crewed flights, and interplanetary exploration.
Its technologies may also be beneficial in the development of super-heavy launch vehicles that are required for lunar and Martian missions. This establishes Soyuz-5 as an early phase toward more audacious space exploration objectives.
Its adaptability is an additional benefit. The rocket is anticipated to be compatible with a variety of launch sites, such as Baikonur and other Russian cosmodromes, thereby enhancing operational flexibility.
Strategic and Economic Consequences
Cost and reliability are indispensable in a global launch market that is becoming increasingly competitive. Soyuz-5 is engineered to satisfy both requirements by providing an optimal combination of affordability and performance.
The project also mitigates its dependence on foreign components by prioritizing domestic technologies. This enhances strategic autonomy in space operations and fortifies national capabilities.
The rocket’s future appeal to commercial customers could improve its impact, establishing it as a viable competitor in the international launch services market.
Testing and deployment are the the next steps
The successful maiden flight is just the start. In order to verify various configurations and mission profiles, the Soyuz-5 will endure a series of supplementary flight-design tests.
The evaluations will include a variety of payload scenarios, multiple launches, and additional system optimizations. The rocket will only be able to enter regular operational service after this phase has been completed.
In conclusion,
The first successful launch of Soyuz-5 represents an important step forward in Russia’s space program. It illustrates the readiness of a new generation of launch technology and emphasizes the capabilities of the RD-171MV engine, the most potent liquid rocket engine in the world.
Soyuz-5 is not just a new rocket; it is a strategic investment in the future. It is indicative of an attempt to fortify and preserve Russia’s status as one of the most prominent spacefaring nations, while simultaneously establishing the foundation for more ambitious missions in the years to come.
