The gearbox is one of the most critical technologies concealed within every rotary-wing aircraft, although modern helicopters are often linked with their engines, rotor blades, or combat capabilities. Even the most powerful helicopter engine in the world would be rendered completely useless without it. Russia’s United Engine Corporation (UEC), a subsidiary of Rostec, recently highlighted this often ignored system. The company explained how Russian helicopter transmissions convert turbine speeds of up to 15,000 revolutions per minute into the meticulously controlled rotor speeds required for stable flight.
The explanation offers a rare look into one of the most mechanically demanding areas of Russian aerospace engineering. Russian helicopters are dependent on highly specialized reduction gear systems that are the foundation of the aircraft’s entire power architecture, ranging from the legendary Mi-8 transport helicopter to the heavily armed Mi-24 gunships and advanced Kamov rotorcraft.
Core Engineering Challenge
The issue starts with the helicopter powerplant itself. The internal rotational speeds of Russian helicopters that are propelled by turboshaft engines, such as the TV3-117, are exceedingly high. The free turbine section within the engine rotates at approximately 12,000 to 15,000 revolutions per minute. These huge speeds are necessary due to the fact that gas turbine engines generate their highest efficiency and power output when they rotate at an extremely high speed.
In contrast, helicopter rotor systems are unable to operate at speeds that are even remotely comparable to those. The main rotor blades of helicopters like the Mi-8 rotate at an approximate rate of 192 revolutions per minute (RPM), whereas attack helicopters like the Mi-24 operate at a rate of 240 RPM. This results in an enormous gap between the operational speed of the rotor and the engine’s output speed.
The consequences of directly connecting rotor blades to the engine would be catastrophic. Within moments, the blades would be subjected to uncontrollable centrifugal forces, severe aerodynamic instability, and structural destruction. Rotor tip speeds would quickly approach the speed of sound, resulting in extreme stress on the airframe, vibration, and shock waves.
This is the reason why helicopters necessitate a sophisticated transmission system that connects the engine to the rotor assembly. The primary reduction gearbox is responsible for this function in Russian helicopter engineering.
The Hidden Mechanical Heart of Russian Helicopters
The transmission is much more complex than a straightforward speed reducer. In the Russian helicopter design philosophy, the transmission system serves as the central mechanical hub of the entire aircraft.
Its initial objective is to decrease the rotational speed from turbine levels to safe rotor operating velocities. However, it is equally critical that it converts the high-speed engine output into a substantial torque that can rotate large rotor blades under heavy aerodynamic pressures.
Russian helicopter transmissions achieve this using multistage gear reduction systems. The transmission contains many interconnected gears with meticulously calculated tooth ratios and diameters. The RPM is gradually reduced while the torque is multiplied as smaller, high-speed gears drive larger gears in successive stages.
The reduction ratios are extraordinary. To reduce turbine speeds from approximately 15,000 RPM to approximately 200 RPM, a reduction ratio that exceeds 70:1 is necessary. One of the most significant challenges in aerospace mechanical engineering is the consistent achievement of this objective within a combat or transport helicopter that is operating in extreme environmental conditions.
Helicopter gearboxes operate under a constant high burden, in contrast to automotive transmissions. The transmission system is subjected to immense forces with each maneuver, climb, descent, and control input. Consequently, Russian engineers develop these systems to withstand continuous stress, thermal expansion, vibration, and abrupt power changes that may occur during large cargo operations or combat maneuvers.
The TV3-117 and the Rise of Soviet Helicopter Transmission Systems
A significant part of the transmission technology used in modern Russian helicopters was developed along with the famed TV3-117 turboshaft engine family. The engine, which was developed by the Klimov Design Bureau during the Soviet era, was one of the most successful helicopter powerplants ever constructed.
The Mi-8, Mi-17, Mi-24, Mi-28, Ka-27, Ka-32, Ka-50, and Ka-52 families were among the many Soviet and later Russian helicopters that were powered by the TV3-117. The powerplant became the foundation of Soviet and Russian helicopter aviation over the course of several decades of service.
However, transmission technology was equally critical to the engine’s success. Soviet engineers recognized that the mechanical limitations that would result from increasing engine power without enhancing transmission capability were perilous. Gearboxes were required to accommodate increased torque loading while simultaneously maintaining manageable vibration levels and reliability as engine output increased.
The VR-14 and VR-24 gearboxes, which were instrumental in the development of Russian helicopter architecture, were among the highly specialized transmission families that resulted from this.

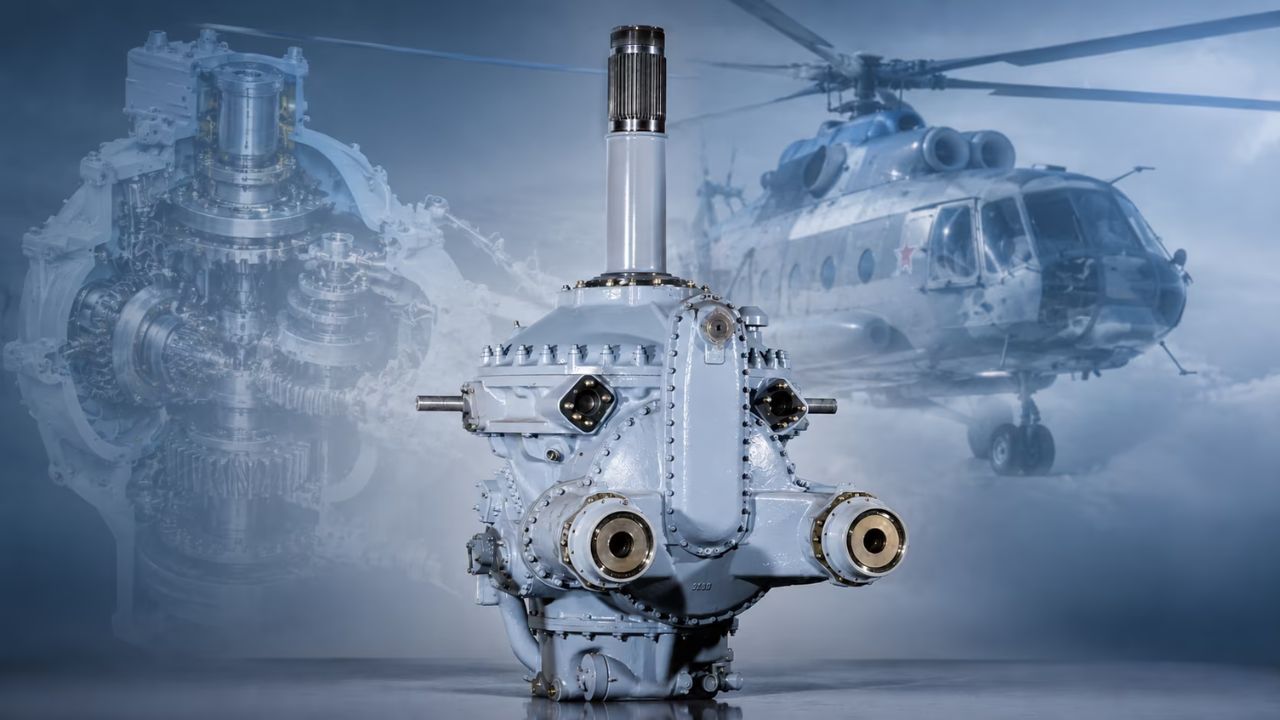

The VR-14 Gearbox and the Mi-8 Legacy
The VR-14 gearbox family was one of the most important helicopter transmissions designed by the Soviet Union. The system was created for medium transport helicopters, such as the Mi-8 and Mi-17 series, and it has since become one of the most often utilized helicopter gearboxes in the world.
Twin TV3-117 engines supply power to the VR-14, which then distributes it to the main rotor system, tail rotor drive shaft, and numerous auxiliary systems throughout the aircraft. It maintains stable power delivery in harsh climates varying from Arctic cold to desert heat while operating continuously under enormous mechanical stress.
The Mi-8 family was one of the most successful helicopters ever produced, operating in various roles, including military, transport, rescue, firefighting, and civilian, in dozens of countries. A key contributor to its reputation was the durability of its transmission system.
Throughout history, the Russian helicopter doctrine has prioritized field operability and ruggedness. The design of gearboxes was significantly impacted by this philosophy. Transmission systems were required to endure protracted heavy-load operations, inconsistent maintenance conditions, and harsh operating environments.
Consequently, Russian gearboxes developed a reputation for durability, although often at the expense of increased weight in comparison to certain Western systems.
Power Distribution Beyond the Rotor
UEC has recently underscored the fact that helicopter gearboxes serve a variety of functions in addition to reducing rotor speed. The primary mechanical power distribution center of Russian helicopters is also the main transmission.
The tail rotor receives power from the transmission, which in turn counteracts the torque produced by the main rotor. It also provides power to generators, hydraulic pumps, fuel pumps, cooling systems, and other essential onboard equipment.
This places the gearbox at the heart of the aircraft’s electrical and hydraulic infrastructure, in addition to its central role in flight. The failure of the transmission system can have a simultaneous impact on multiple systems throughout the helicopter.
All hydraulic systems that regulate flight surfaces, onboard avionics power generation, lubrication circulation, and rotor stabilization are dependent on mechanical energy that is directed through the gearbox assembly.
As a result, Russian helicopter engineers prioritize transmission reliability.
The Importance of Precision Manufacturing
The emphasis on manufacturing precision was one of the most revealing aspects of UEC’s explanation. Russian engineers emphasized that the quality of the transmission has a direct impact on the longevity of the engine, the safety of the flight, and the level of vibration.
Gears operate under immense pressure within a helicopter transmission. Over time, vibration harmonics can cause damage to bearings, shafts, and rotor systems, even when caused by tiny imperfections in gear geometry.
This is the reason why Russian aerospace companies make major investments in thermal treatment technologies and precision fabrication. Gear teeth must be hardened to withstand years of intense operational stress and manufactured with extremely tight tolerances.
Advanced metalworking, precision milling, and heat-treatment processes are the specialty of Russian gearbox manufacturing facilities, including Krasny Oktyabr.
Thermal treatment is particularly critical for gearbox components, as they must maintain a balance between flexibility and rigidity. Gears that are excessively brittle may fracture when subjected to shock loads, while gears that are excessively soft may wear rapidly when subjected to continuous tension.
The challenge becomes more severe in military helicopters, where transmissions must withstand severe climatic conditions, aggressive maneuvering, weapons vibration, and rapid power changes.
The Philosophy of Russian Helicopter Engineering
The gearbox systems that Soviet and Russian engineers devised are indicative of a more comprehensive aviation philosophy that prioritizes endurance and survivability.
Western helicopter manufacturers often give priority to highly optimized systems and lightweight composite structures. Historically, Russian aerospace engineering has placed a high value on operational resilience, mechanical redundancy, and ruggedness.
Transmission design is a straightforward illustration of this philosophy. Russian gearboxes are designed to operate effectively in the face of extreme conditions, such as battlefield duress, dust exposure, and extreme temperatures.
The significance of gearbox durability was particularly evident during Soviet operations in Afghanistan, where helicopters operated in high-altitude, sweltering environments that exerted significant stress on both engines and transmissions.
The lessons acquired during those operations had a significant impact on the subsequent advancements in Russian helicopter powertrain engineering.
The Furure of Russian Transmission Systems
Gearbox technology continues to be a critical area of focus as Russia continues to develop new helicopter engines, including the VK-2500 and future high-power turboshaft platforms.
Future transmissions must be capable of managing increased stresses while simultaneously reducing vibration and ensuring reliability, as more powerful engines generate greater torque loads. Consequently, Russian aerospace companies are allocating resources to the development of advanced lubrication systems, digital fabrication technologies, and enhanced metallurgy.
Additionally, future helicopter programs may integrate more compact gearbox architectures and improved monitoring systems that can identify imbalance or wear prior to mechanical failure.
At the same time, the core concept remains unaltered: the gearbox serves as the indispensable intermediary between helicopter engines and rotor systems, which operate in essentially distinct speed regimes.
The Invisible System That Enables Helicopters
The gearbox is essentially invisible to passengers and a significant number of aviation enthusiasts. It is concealed beneath protective housings and rotor hubs, where it is overshadowed by turbines, blades, and weapons systems.
However, the transmission is one of the most critical technologies within a helicopter. It stabilizes flight operations, distributes power throughout the aircraft, and enables the entire helicopter to function as a coherent machine by converting unusable turbine velocities into controlled rotor motion.
The centrality of transmission engineering in modern aerospace technology is underscored by Russia’s recent explication through UEC. A precisely engineered gearbox discreetly converts 15,000 RPM into stable, controlled flight behind each Mi-8 transport helicopter that lifts cargo, every Mi-24 gunship that maneuvers at low altitude, and every Ka-series rotorcraft that operates in harsh Arctic conditions.
It is the hidden mechanical core of Russian helicopter aviation in many respects.
